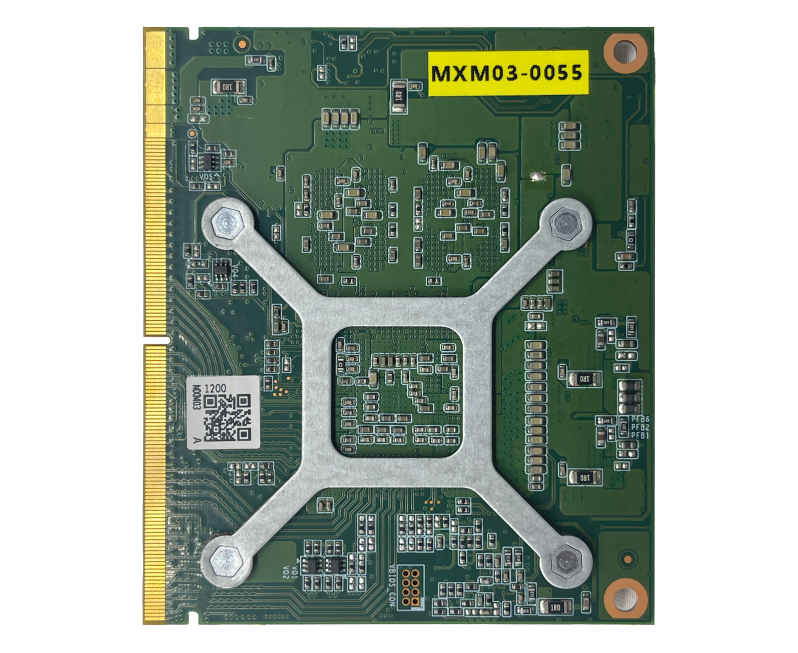

B23-A370M-MXM03
Decenta MXM module takes advantage of Intel® Arc™'s hardware ray tracing and dedicated AI acceleration to support up to four 4K displays for improved responsiveness, accuracy and reliability. Based on Intel® ArcTM A370M, the MXM module has up to eight Xe ray tracing cores, 128 execution units, 4GB GDDR6 memory, 112GB/s bandwidth, and supports 8x PCle 4.0. More importantly, it is the industry's first graphics card to include full AV1 hardware coding, which is 4.4 times faster than traditional software.
Main Features
  • MXM(3.1) Type-A graphics module based on Intel® Arc™ A370M.

  • Support AV1 hardware encoding.

  • 4 Independent Displays.

  • Support up to 8 Xe ray tracing cores, 128 execution units.

B23-A370M-MXM03

1

B23-A370M-MXM03

1

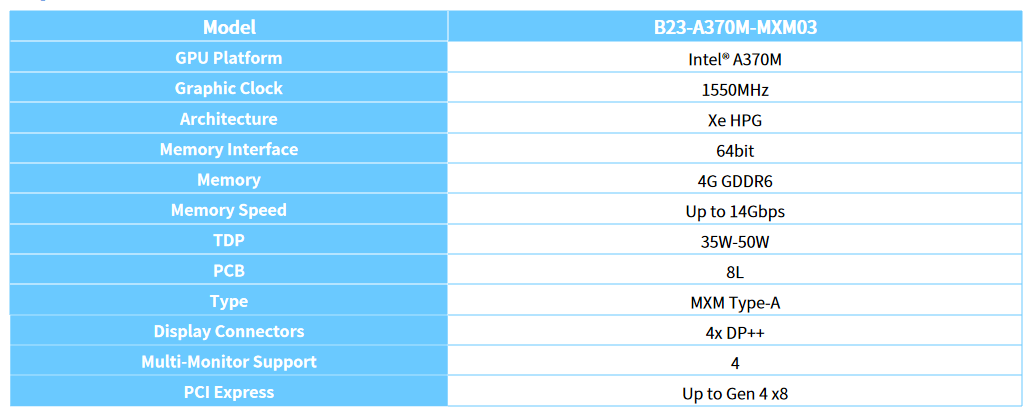

  • Product Specifications
  • Product Dimension Drawing

Document
Download

Fill in and verify your email to download detailed product documents.
  • Get Verification Code
