M24-CFLS-ATX07

主要特点

    l Intel® LGA 1151 Socket: Ready for 9th/8th gen Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor

    l Support 2x DDR4 2666MT/s U-DIMM, Dual Channel, up to 64GB

    l Support VGA/HDMI®/DP Tri-display

    l 1x M.2 E-Key 2230 Slot, 1x M.2 M-Key 2242/2280 Slot

    l 1x PCIe 3.0 X16 Slot, 1x PCIe 2.0 X4 Slot(X2 Singal), 1x PCIe 2.0 X4 Slot(X1 Singal), 4x PCI Slots

    l Support TPM 2.0 encryption technology


      http://decenta.junui.cn/upload/20240415/dbe548aeb9644b6e69621ae151585d63.png


下载
个人信息

姓名*

邮箱地址*

手机号码*

公司*

文件下载
1 全选 0
一键下载
  • 产品概述

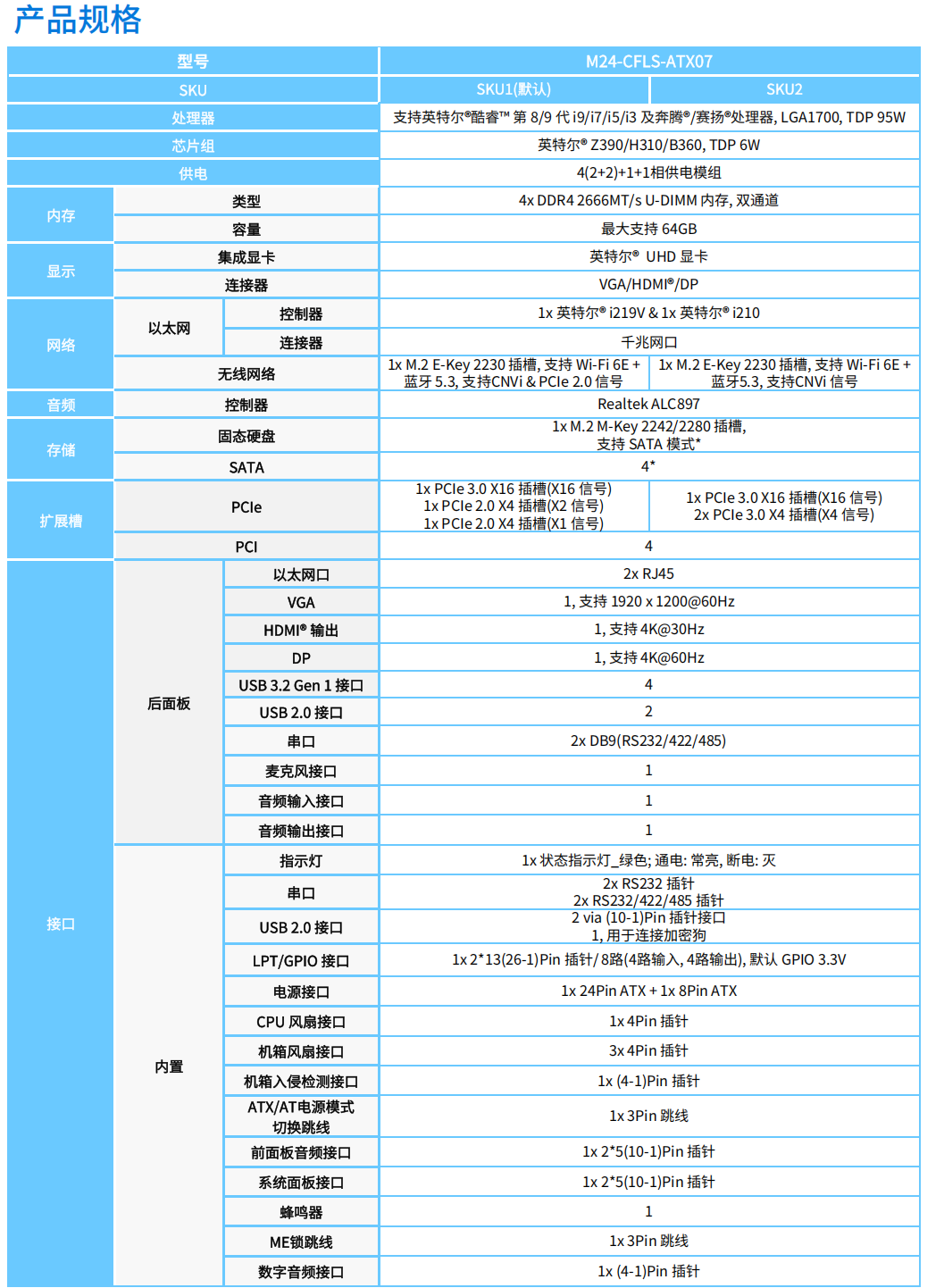

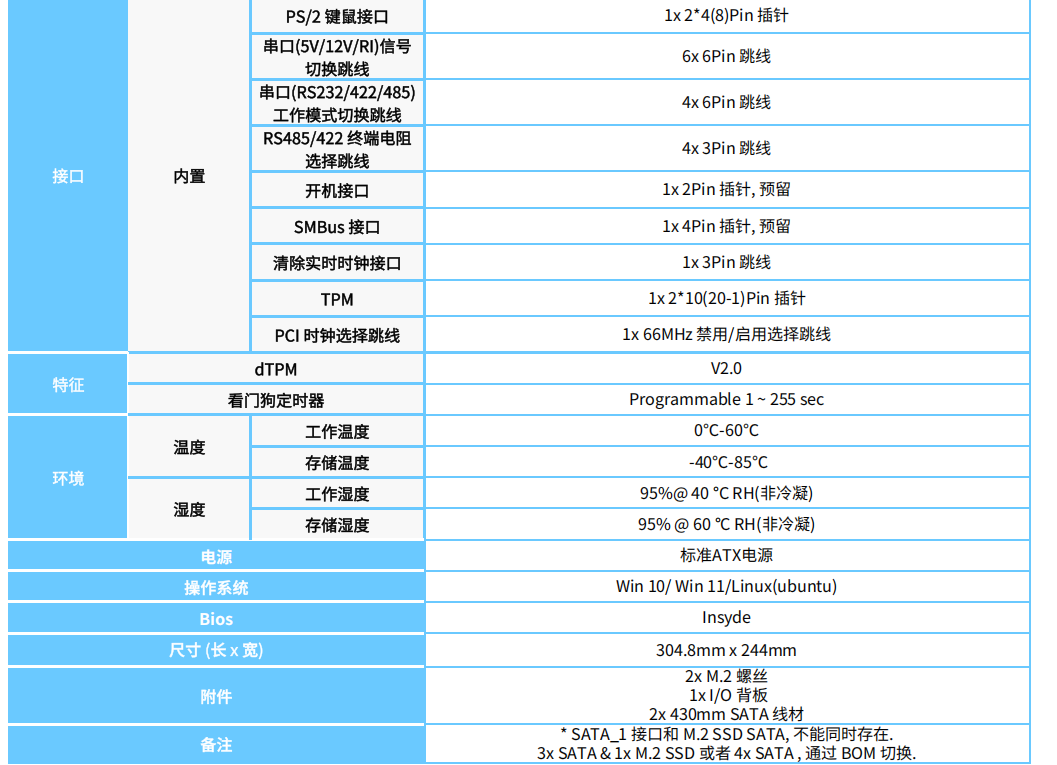

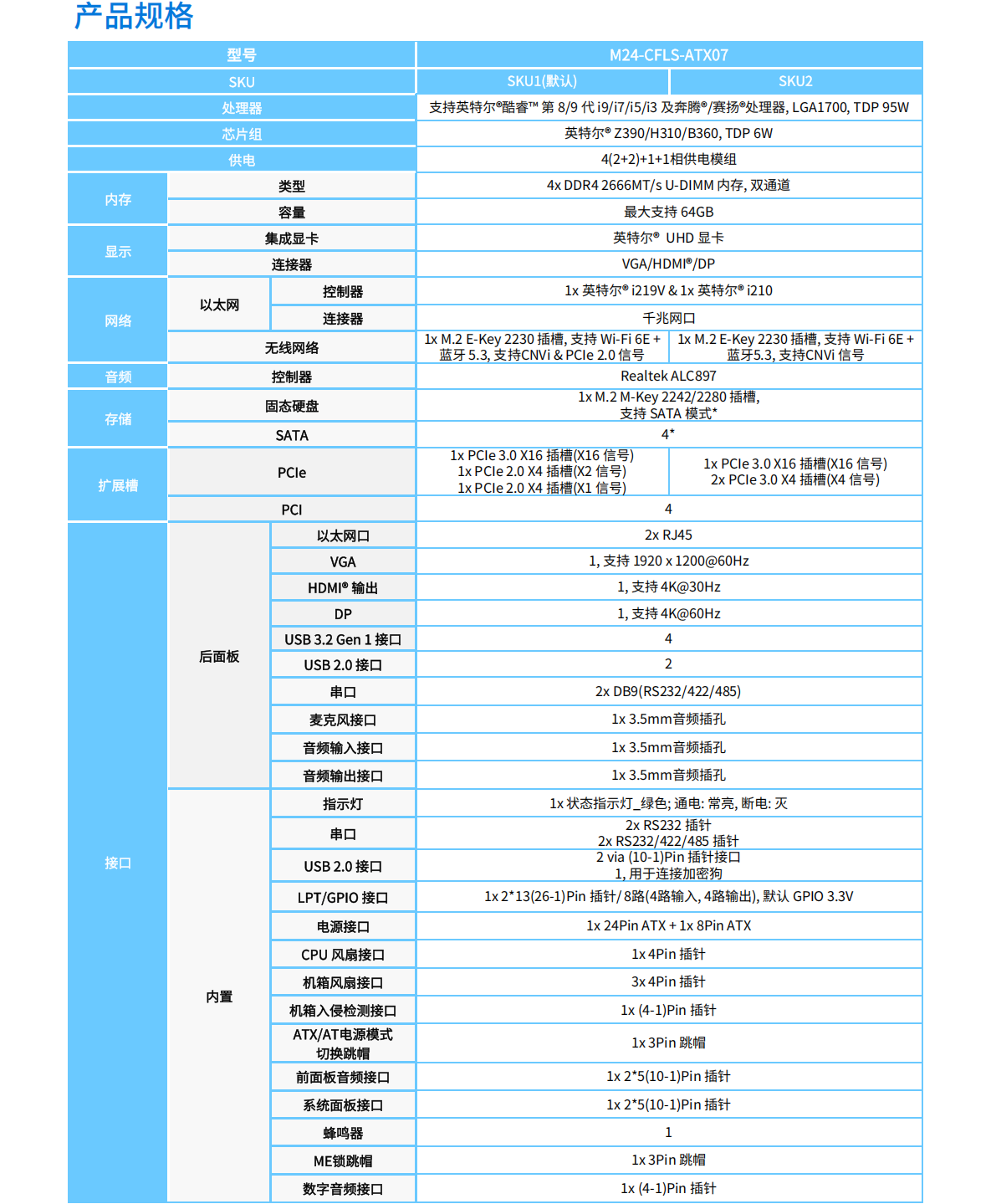

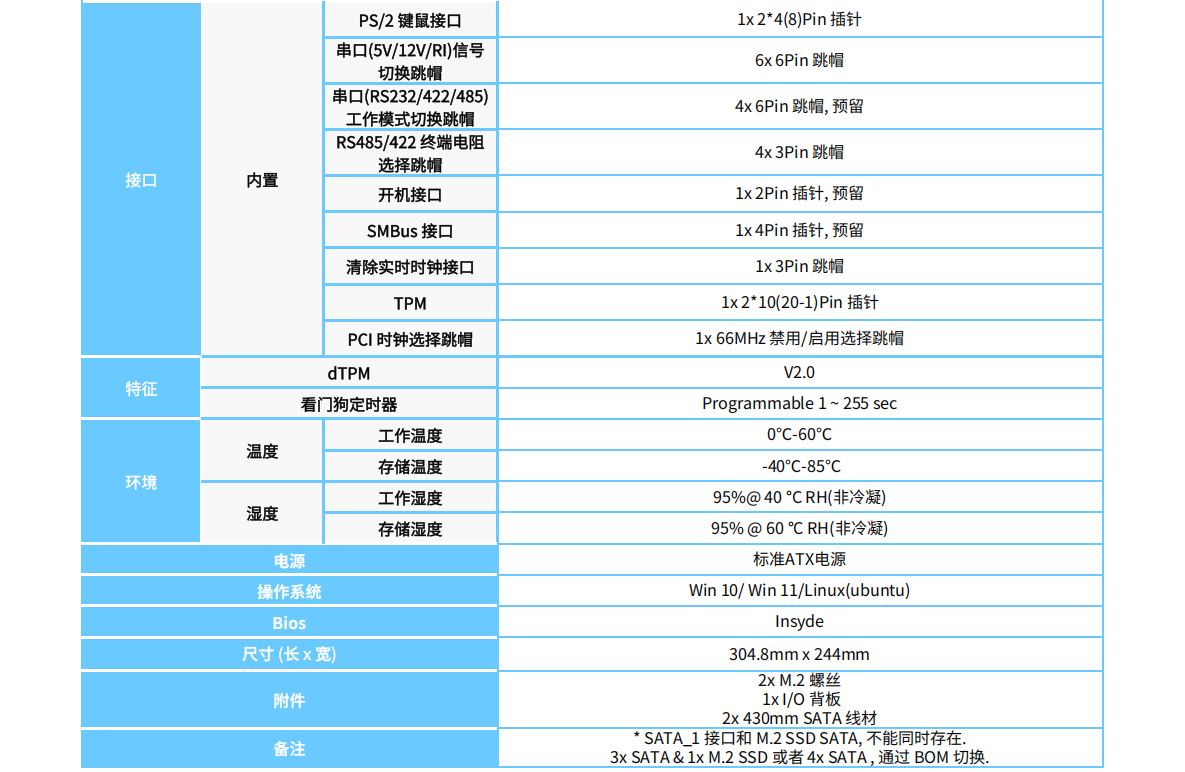

  • 技术参数

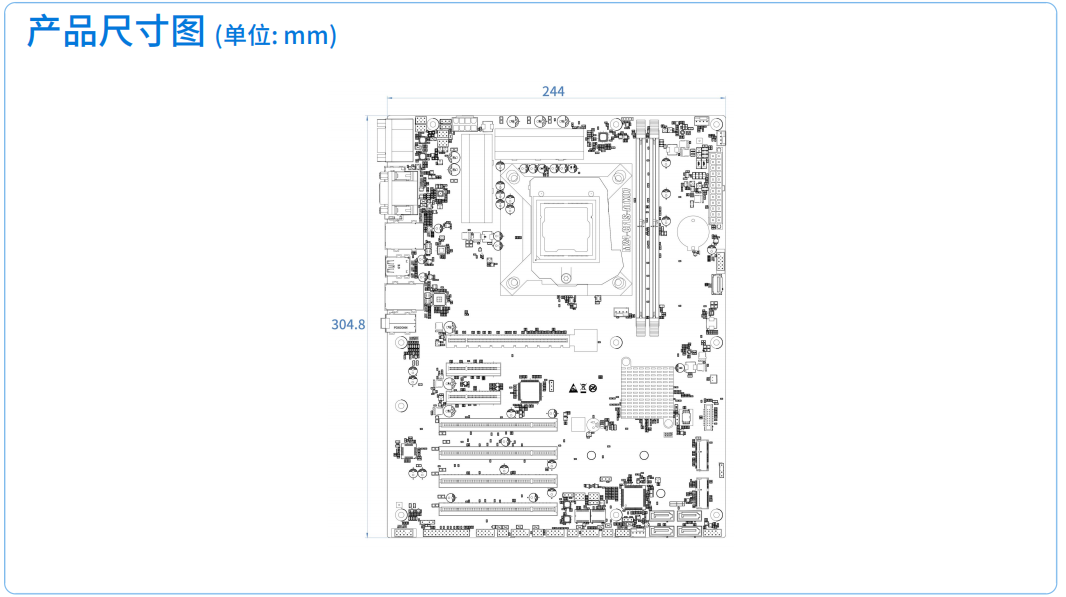

  • 图片尺寸
  • 订货型号
  • 说明书
  • 产品型录

Decenta ATX07 is a standard ATX form factor motherboard, which is built on Intel® H310/B360 Chipset.  It has multiple expansion slots and rich I/O interfaces, making it widely used in Industrial automation, embedded systems, communication equipment, industrial servers and other scenarios.

http://decenta.junui.cn/upload/20250331/db666eb9b3a276b51b0a6284f6e2f219.png

http://decenta.junui.cn/upload/20250331/35d9ddff60b8f2b976d545c2d10f60f8.png

http://decenta.junui.cn/upload/20250331/5064d091d31e5310fd70cb89b397c3ca.png
