M24-CFLS-ATX05

主要特点

    l Intel® LGA 1151 Socket: Ready for 9th/8th gen Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor

    l Support 4x DDR4 2666MT/s U-DIMM, Dual Channel, up to 128GB

    l Support VGA/HDMI®/DP/eDP Tri-display

    l 1x M.2 E-Key 2230 Slot, 1x M.2 M-Key 2242/2280 Slot

    l 2x PCIe 3.0 X16 Slots(X8 Singal), 2x PCIe 3.0 X4 Slots(X4 Singal), 2x PCIe 3.0 X4 Slots(X2 Singal)

    l 1x PCI Slot

    l Support TPM 2.0 encryption technology


      http://decenta.junui.cn/upload/20240415/dbe548aeb9644b6e69621ae151585d63.png


下载
个人信息

姓名*

邮箱地址*

手机号码*

公司*

文件下载
1 全选 0
一键下载
  • 产品概述

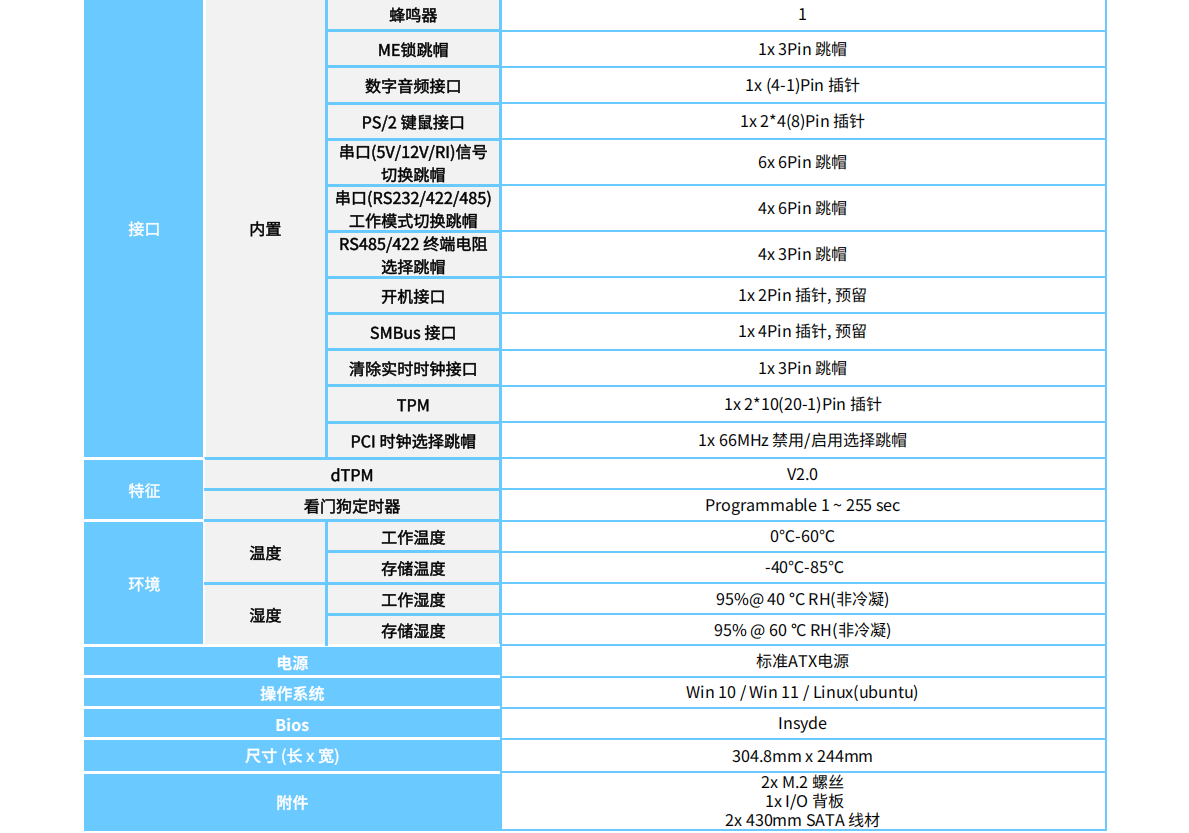

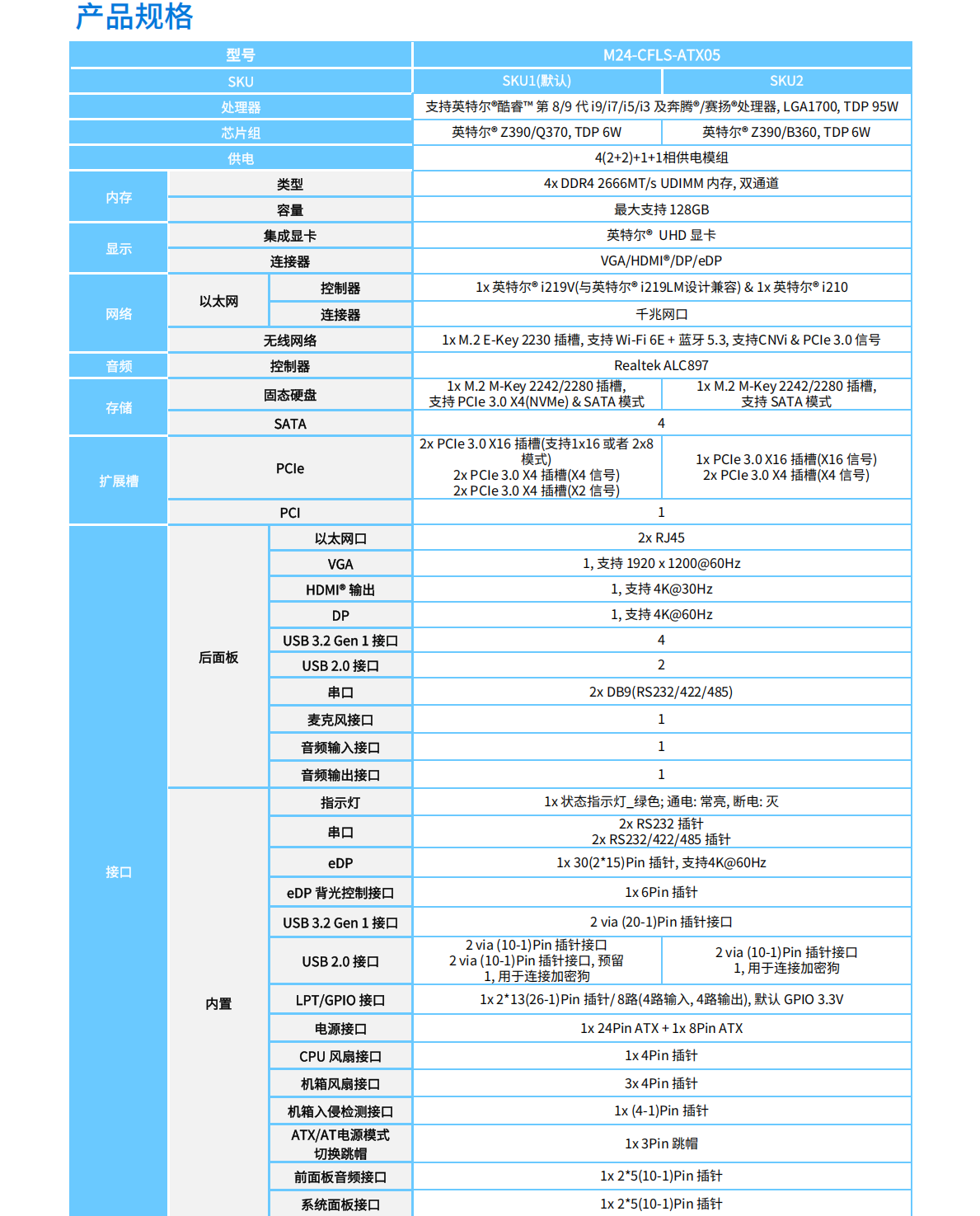

  • 技术参数

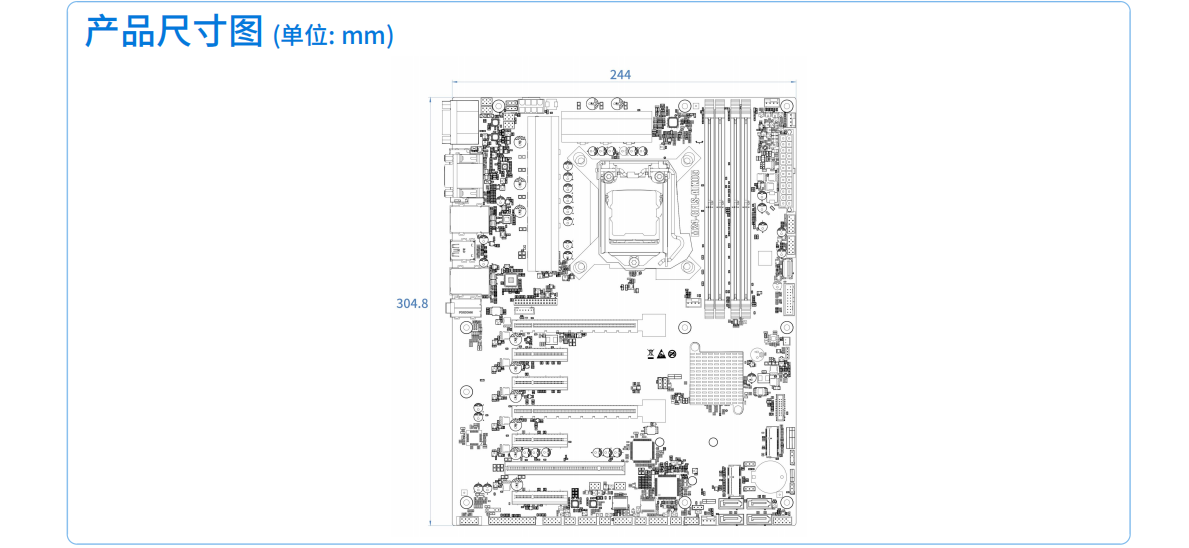

  • 图片尺寸
  • 订货型号
  • 说明书
  • 产品型录

Decenta ATX05 is a standard ATX form factor motherboard, which is built on Intel® Q370/B360 chipset.  It has multiple expansion slots and rich I/O interfaces, making it widely used in Industrial automation, embedded systems, communication equipment, industrial servers and other scenarios.

http://decenta.junui.cn/upload/20250331/879dbfc37dbc2f2cd104068ae790c14d.png

http://decenta.junui.cn/upload/20250331/d5a4e7e57ad6845675de84ade3b2d411.png

http://decenta.junui.cn/upload/20250331/08d2bbcdeb7fba9b7b0a98da4f11deee.png
