l JAE 80pin 支持HDMI2.0，外部接口支持HDMI1.4
l 支持2个USB2.0接口，2个USB3.0接口，选择支持USB Type-C接口
l 双通道内存，最大支持32G
l 支持M.2、SATA多种存储方式
l 支持TPM加密
select all
0

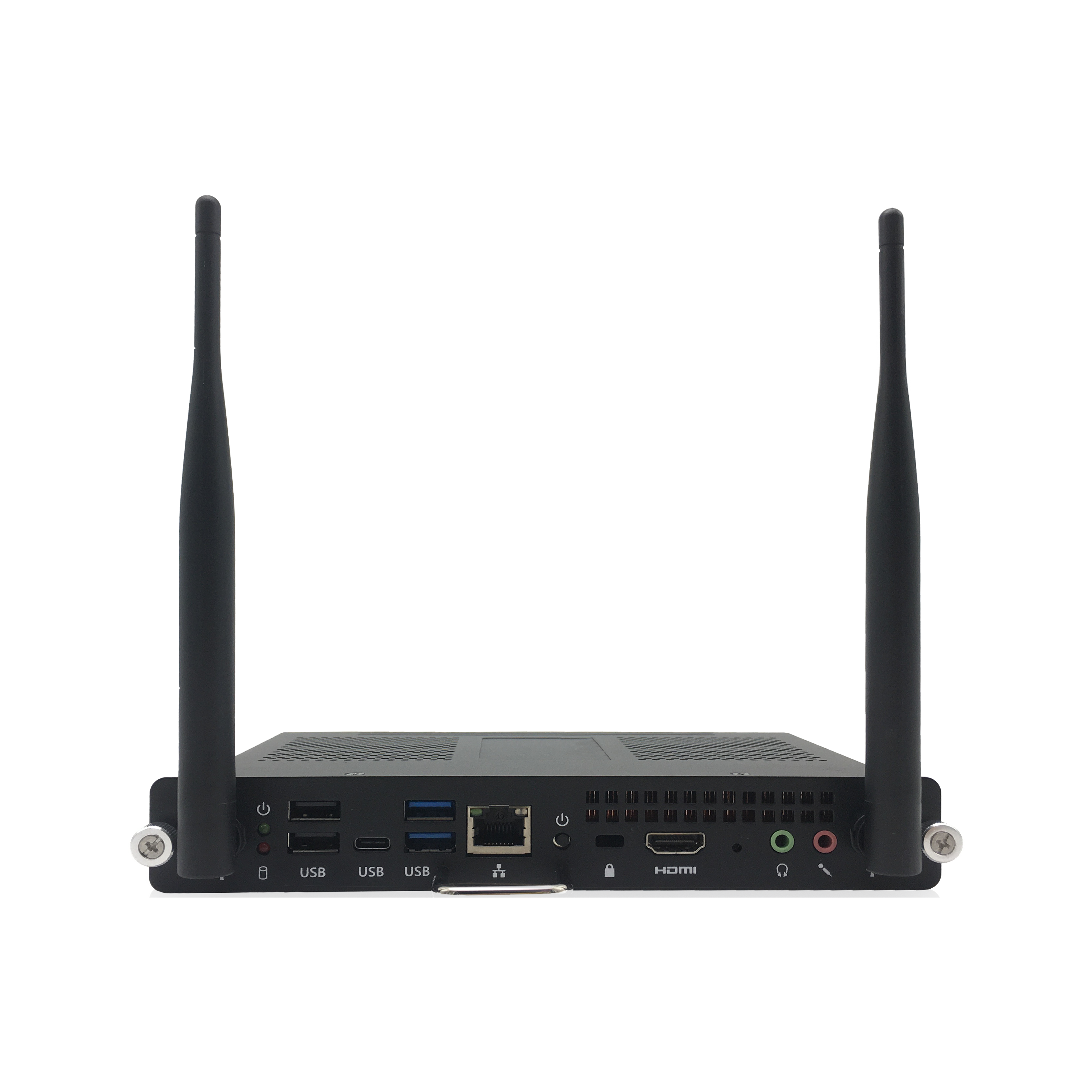

l 德晟达OPS系列S19-CFLS-OPS07-2符合Intel OPS行业规范
l 采用Intel第6/7/8/9代酷睿处理器
l 双通道内存，最大支持32G
l 支持M.2、SATA多种存储方式
l 应用于教育、会议电子白板及数字标牌等场景
型号 | S19-CFLS-OPS07-2 |
CPU | 6/7/8/9th Gen Intel® Core™ Processors |
Platform | Skylake-S/Kaby Lake-S/Coffee Lake-S |
Chipset | H310C |
Graphics | Intel® HD Graphics 530/630 |
主板接口 | |
RAM | Dual channel,DDR4,2x2400MHz |
SSD | SATA/NVMe Max:1T |
HDD | / |
LAN | Integrated 10/100/1000M Adaption |
WIFI | Intel AC3165/8265 |
Bluetooth | 4.2 |
USB 3.0 | 2 |
USB 2.0 | 2 |
USB Type-C | 1 |
HDMI | 1(up to 4K 60Hz resolution) |
TPM | N/A |
Intel vPro | / |
功耗 | |
Power Requirements | 12V-19V DC |
Max Power | 60W |
Standby Power | 0.5W |
物理性能 | |
Color | Black |

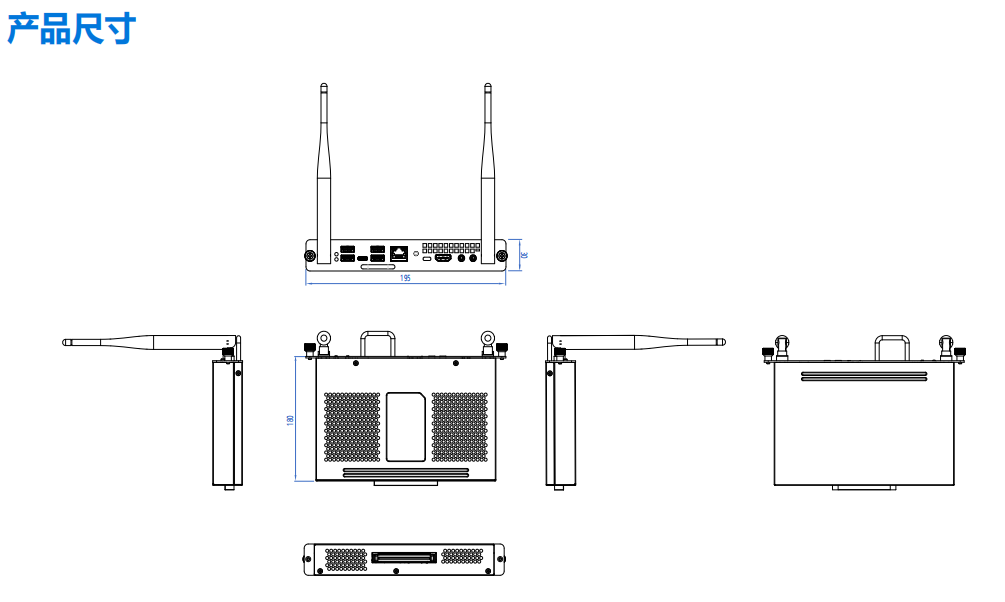

Dimension L*W*H | 180x119x30(mm) |
Net Weight | About 1.0kg |
环境条件 | |
Operation Temperature | 0°C - 40°C |
Operation Humidity | 10%-90% |
Storage Temperature | -20°C - 60°C |
Storage Humidity | 10% - 90% |
可选CPU:
G4900T/G5400T
i3 6100T/6300T/7100T/7300T/8100T/8300T
i5 6400T/6500T/7400T/7500T/8400T/8500T
i7 6700T/7700T/8700T/8300T
