SM5OPSCSBD01

主要特点


      The JAE 80pin supports HDMI2.0,and the external interface supports HDMI1.4



      Supporting USB2.0 portsx2,USB3.0 portsx2


      Dual channel memory,up to 16G



个人信息

姓名*

邮箱地址*

手机号码*

公司*

文件下载
1 全选 0
一键下载
  • 产品概述
  • 技术参数
  • 图片尺寸
  • 订货型号
  • 说明书
  • 产品型录

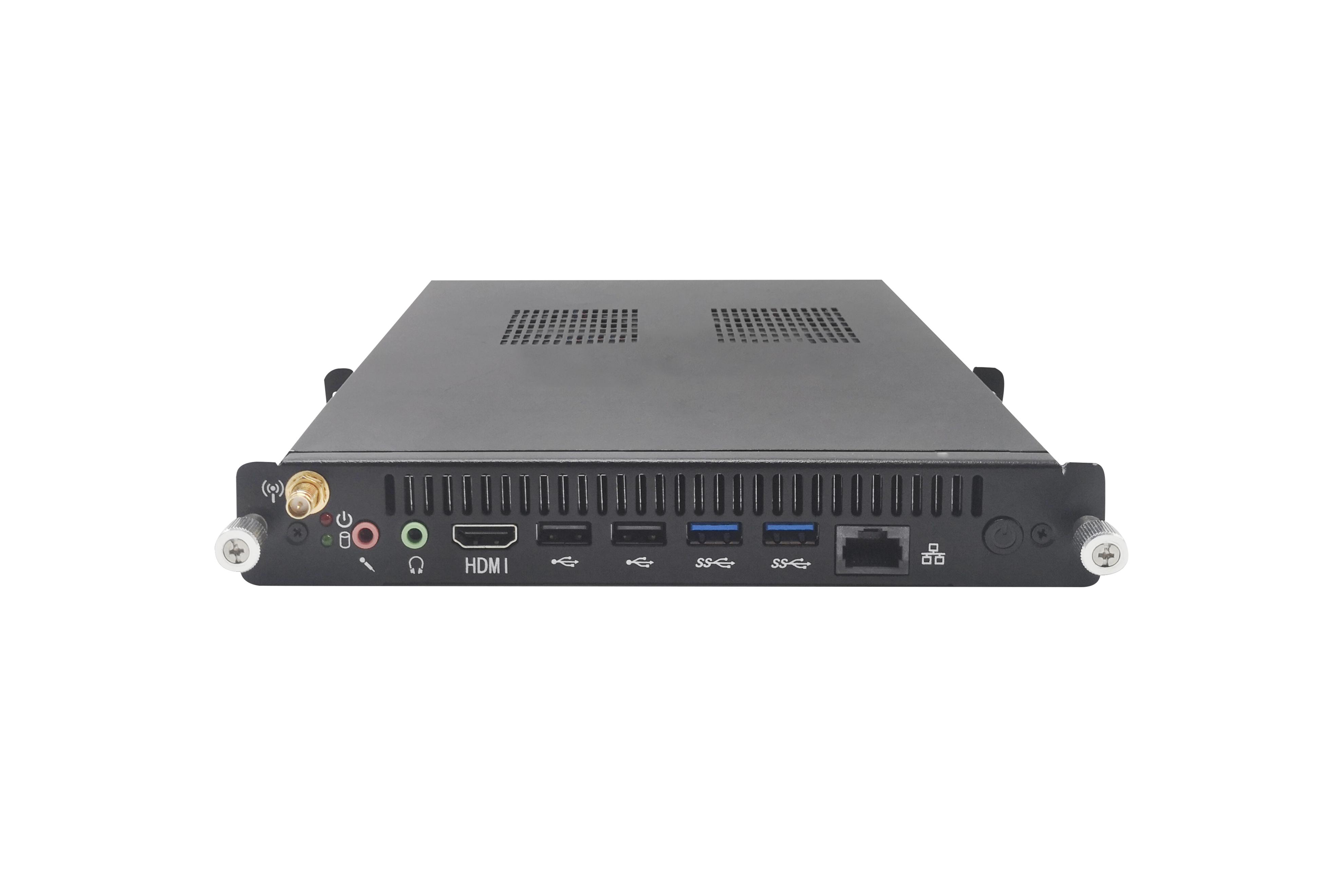

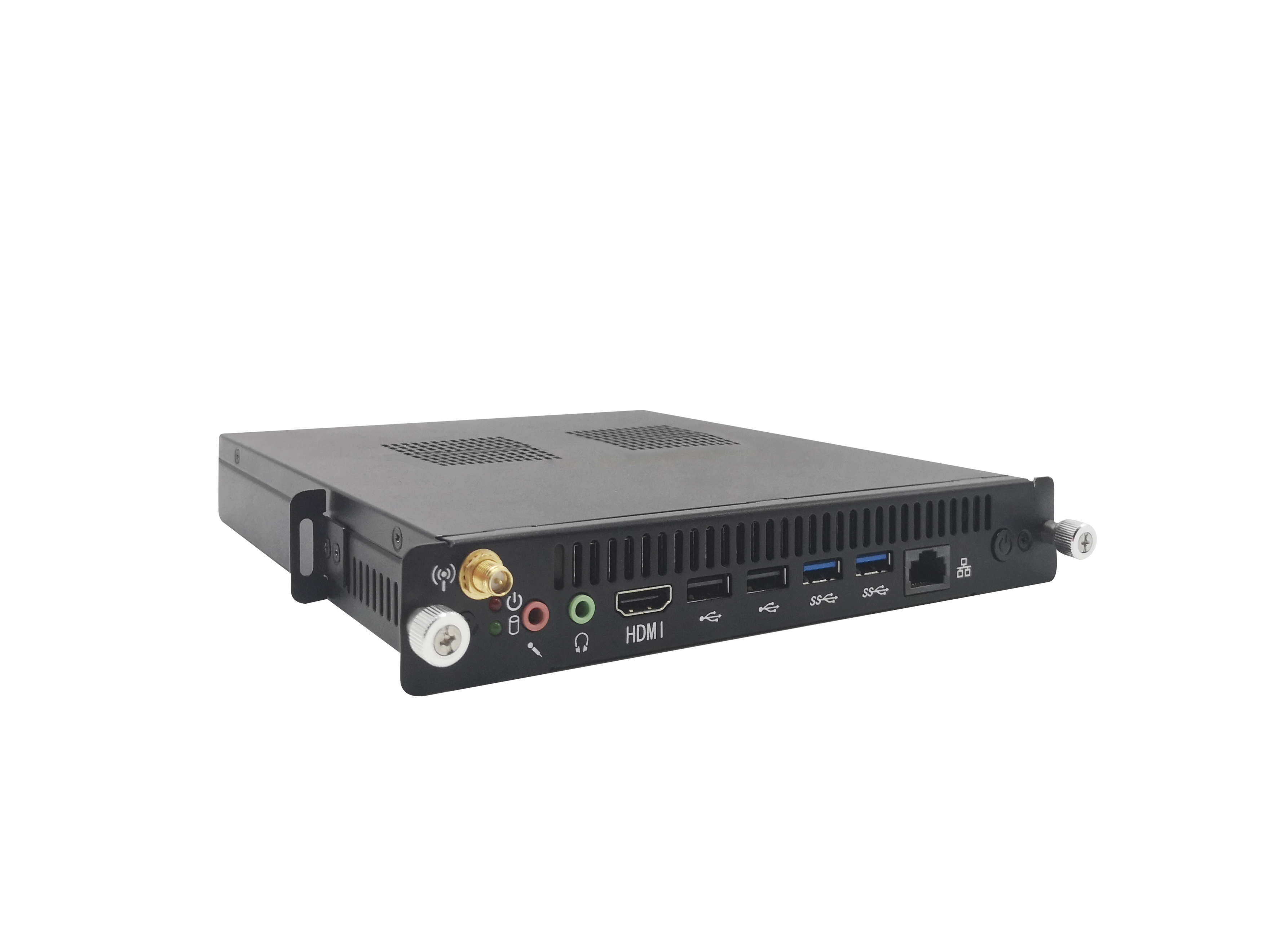

Decenta OPS series SM5OPSCSBD01 conforms to the industry specification of Intel®

    OPS-C



Using Intel® 4th Gen Core™ i5/i7 processors


Dual channel memory,up to 16G



Supporting multiple storage methods,such as M.2 and SATA


It is applied to education and conference electronic whiteboard & digital signage

    situations

Model

SM5OPSCSBD01

CPU

4th Gen  Intel® Core ™ i5/i7 processors

Platform

Intel® socket 1151 Support:haswell

Chipset

Intel® H181

Integrated graphics

NVidia GT730 /GTX1030

Discrete graphics

INVidia GT730 /2G

Motherboard Interface

RAM

2 slots for DDR3 1333/1600MHz  16G

SSD

SATA Max:1T

LAN

Integrated 10/100/1000M Adaption

WIFI

IEEE 802.11 ac (2.4G/5G)

Bluetooth

Bluetooth 4.0 (Optional)

USB 3.0

2

USB 2.0

2

Antenna

1

HDMI

1(up to 4K 60Hz resolution)

Heat-removal System

1(up to 4K 60Hz resolution)

Sound Card

Integrated Hight Difinition Audio Stereo

Lan Port (RJ45)

1

Power Consumption

Power Supply Mode

Internal Power Supply Module

Power Requirements

12V-19V DC

Max Power

95W

Standby Power

0.5W

Physical Properties

Color

 White & Black

Dimension L*W*H

180x195x30/42(mm)

Net Weight

About 1.24kg

Environmental Conditions

Operation Temperature

0°C - 40°C

Operation Humidity

10%-90%

Storage Temperature

-20°C - 60°C

Storage Humidity

10% - 90%

//decenta.junui.cn/images/admin/upload/20220619/71846863cd33260105c917da7b177e65.png

Recommended CPU


i3 4170

i5 4460

i7 4790
